1800m3/h -20KPA Roots Blower Positive Displacement Vacuum Pump

Brand Name : BK

Model Number : BV6015

Certification : ISO9001/ISO14001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 80 SETS per month

Delivery Time : 5 to 20 working days, depends on order amount and specification

Packaging Details : Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli

Type : vacuum sauction, roots type

Air capacity : 14.68-39.13m3/min

Discharge differential pressure : -10KPA ~ -40KPA

Motor power : 11-22/30/37-45 KW

Discharge bore : DN150(6”)

Cooling type : Air

Driven type : motor driven, connected by belt and pulley

Weight : 380 kg

Speed : 850-1800 rpm

Contact Now

-20KPA Roots Blower Vacuum Pump, vacuum air capacity 1800m3/h

About BK vacuum pump

BK vacuum pump is designed for vacuum use by exchanging the outlet and inlet of positive application roots blower.

Its maximum vacuum pressure is -40KPA. Widely applied in vacuum application in food conveying, metallurgy, chemical industry,electronic coating and other industries, it has enjoyed good reputation among customers due to its smooth operation and stable performance.

Specifications

Model	BV6015
Inlet dimension	DN150
Outlet dimension	DN150
Air capacity	14.68-39.13m³/min
Discharge differential pressure	-10 ~ -40KPA
Rotary speed	850-1800rpm
Motor type	11-22/30/37-45 KW 380/400/415/440V, 3PHASES, 50/60HZ
Motor efficiency grade	IE3
Installation type	Standard: horizontal type. Vertical type available for your option
N.W. of blower without motor	380kg
Packing size Approx.	1.81.22.0m (lengthwidthheight)

Parameter sheet

Model	Port Dia (MM)	Speed	Inlet capacity (m3/min)and shaft power (KW)
			-0.1kgf/cm2		-0.2kgf/cm2		-0.3kgf/cm2		-0.4kgf/cm2
			-1000mmH2O		-2000mmH2O		-3000mmH2O		-4000mmH2O
			-0.01Mpa		-0.02Mpa		-0.03Mpa		-0.04Mpa
		rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
BV6015	150(6")	850	17.17	4.71	16.13	8.24	15.35	11.22	14.68	14.22
		1000	20.64	5.54	19.60	9.70	18.81	13.20	18.14	16.73
		1150	24.10	6.37	23.06	11.15	22.28	15.19	21.61	19.24
		1250	26.42	6.92	25.38	12.12	24.59	16.51	23.92	20.91
		1400	29.88	7.75	28.84	13.57	28.06	18.49	27.39	23.42
		1500	32.19	8.31	31.15	14.54	30.37	19.81	29.70	25.10
		1650	35.66	9.14	34.62	16.00	33.83	21.79	33.16	27.61
		1800	39.13	9.97	38.09	17.45	37.30	23.77	36.63	30.12

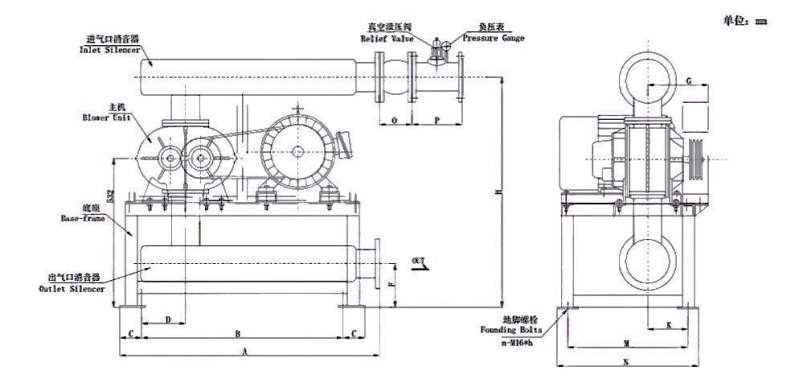

Assembling drawing of blower package

1800m3/h -20KPA Roots Blower Positive Displacement Vacuum Pump

BV Outline Dimension Sheet																	Unit:mm
Type	Port Dia	Motor power	A	B	C	D	E	F	G	H	K	M	N	0	P	Q	n-M16×h	Weight (kg)
BV6015	150(6")	11～22	1340	1064	113	222	748	232	364	1460	238	476	573	180	280	24	4-M16×400	380
		30										539	636
		37～45										563	660
Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.
The weight above are for standard accessories only,motor excluded.

Standard supply of scope

1. blower main body

2. vacuum safety valve

3. inlet silencer

4. outlet silencer

5. public base (with belt cover)

6. rubber flexible joint and shock pad

7. blower pulley

8. pressure gauge

9. belt

10. bolts and nuts and other connection parts

11. motor
