Reliable Performance Blue Color Roots Lobe Blower / Roots Rotary Blower For Various Uses

Name: Reliable Performance Blue Color Roots Lobe Blower Roots Rotary Blower For Various Uses
Brand: B-Tohin
Price: 1070 USD

Quality Reliable Performance Blue Color Roots Lobe Blower / Roots Rotary Blower For Various Uses for sale

Brand Name : B-Tohin

Model Number : BK4005

Certification : IOS9001 / ISO14001/CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD 1070

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 35 work days

Packaging Details : export wooden case

Name : Three lobe Roots Blower

Color : Light Blue

Air Flow : 0.42m3/min-1.80m3/min

Blower RPM : 1500-2300rpm

Voltage : 380V/400V/415V/440V/Customized

Frequency : 50HZ/60HZ

Application : Waste water treatment

Installation type : horizontal or vertical

Discharge differential pressure : 10-80kPa

Contact Now

About BK3
BK Roots Blower is a kind of product designed and manufactured according to the national standards. With small bore size, BK40 can meet the demands of small capacity application.

Specifications:

Model	BK4005
Air capacity	0.42m3/Min-1.80m3/Min
Discharge differential pressure	10-80KPA
Rotary speed	1500rpm-2300rpm
Motor type	1.5KW-4KW 380/400/415/440V, 3PHASES, 50/60HZ

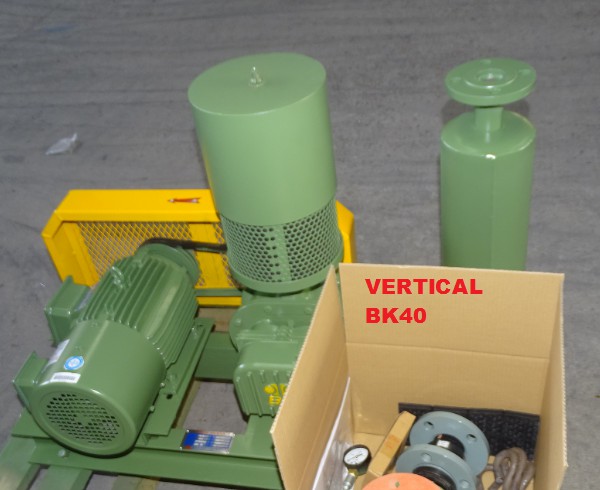

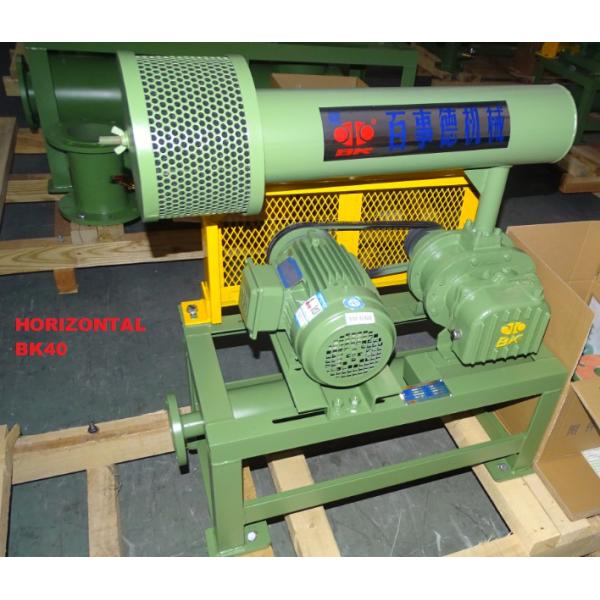

Installation type	Standard: horizontal type. Vertical type available for your option
N.W. of blower without motor	65kg
Packing size Approx.	1.250.851.28m (lengthwidthheight)
Features	1. Helical type timing gears for smooth operation 2. Compact, flexibility in installation gives users more choices. 3. Integral structure of impeller and shaft without shortcomings of the split structure blower 4. Adopt imported oil seals made from fluoric rubber with perfect wear resistance and high-temperature resistance. 5. Low noise, low vibration and energy consumption.

Parameters

Model/Port Dia	Speed	Inlet airflow(m3/min)and shaft power(KW)at different conditions
	Speed	10kpa		20kpa		30kpa		40kpa		50kpa		60kpa		70kpa		80kpa
	rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
4005(1.5'')	1500	1.01	0.82	0.81	0.96	0.66	1.11	0.53	1.25	0.42	1.40
	1650	1.16	0.90	0.96	1.06	0.81	1.22	0.68	1.38	0.57	1.54	0.53	1.80
	1800	1.31	0.98	1.12	1.16	0.96	1.33	0.85	1.50	0.74	1.68	0.68	1.90
	1900	1.42	1.04	1.20	1.22	1.11	1.40	1.05	1.59	0.93	1.77	0.73	1.95	0.73	2.14
	2150	1.65	1.17	1.45	1.38	1.30	1.59	1.17	1.80	1.06	2.00	0.96	2.21	0.87	2.42	0.78	2.63
	2300	1.80	1.26	1.60	1.48	1.45	1.70	1.32	1.92	1.21	2.14	1.11	2.36	1.02	2.59	0.93	2.81

Working Principle

Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.

Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.

Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.
